HC Series

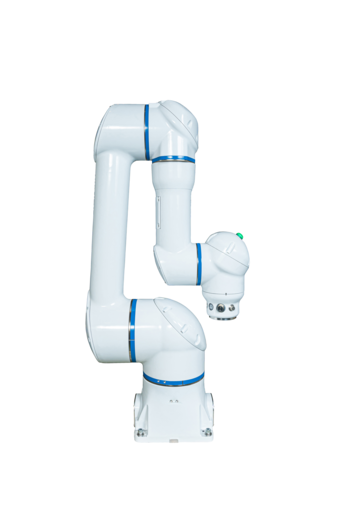

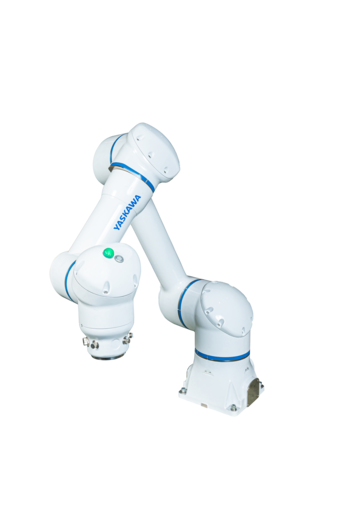

HC20SDTP
Short-arm Variant for confined Spaces
Ürünlere Genel Bakış
As a shortened version of the HC20DTP cobot from the collaborative HC series, the 6-axis HC20SDTP cobot, with its payload capacity of 20 kg, is ideally suited to operation in confined work environments.
The HC20SDTP cobot is particularly suitable for applications requiring a shorter reach and high stiffness characteristics, e.g. screw fastening or assembly. Handling and Pick&Place applications with little space and short motion distances can also be implemented with this cobot. This Cobot is compatible with both 1-phase and 3-phase power supplies.
The Plug&Play connection of grippers is facilitated by the ISO flange as well as configuration wizards on the Smart Pendant. Thanks to the integrated torque sensors in each joint, the cobot can be used collaboratively and without a safety fence.
KEY BENEFITS
- Simple programming with Smart Pendant including Smart Frame and Hand Guiding
- Plug&Play products from the Yaskawa Ecosystem
- Collaborative operation without the need for a safety fence
- Robust cast aluminum housing with lightweight construction
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 20 kg
- Maksimum Çalışma Aralığı
- 1412 mm
- Tekrarlanabilirlik
- 0.05 mm
- Ağırlık
- 97 kg
- Güç Kaynağı
- 1.5 kVA
- Maximum Speed S Axis
- 105 °/s
- Maximum Speed L Axis
- 90 °/s
- Maximum Speed U Axis
- 135 °/s
- Maximum Speed R Axis
- 130 °/s
- Maximum Speed B Axis
- 180 °/s
- Maximum Speed T Axis
- 180 °/s
- Montaj Seçenekleri
- Ceiling, Wall, Floor
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
| Assistenzroboter_Kollaborative Applikationen Broşürler | Almanca | Broşürler | Almanca | |
| Robot Assistants_Collaborative Applications Broşürler | İngilizce | Broşürler | İngilizce | |
| Flyer HC20SDTP Broşürler | Almanca | Broşürler | Almanca | |
| Flyer HC20SDTP Broşürler | İngilizce | Broşürler | İngilizce | |
| HC20SDTP 2D CAD/CAE | | CAD/CAE | ||
| HC20SDTP 3D CAD/CAE | | CAD/CAE |
