Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GP FGG Series

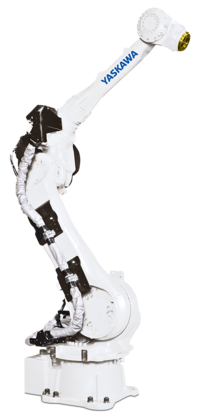

GP50 FGG
6-axis Robot with 50 kg Payload for the Food Industry
Ürünlere Genel Bakış
The GP50 FGG is a highly versatile 6-axis robot with 50 kg payload, 2.051 mm reach and outstanding repeatability of +/- 0.03 mm. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints allows the robot to be used in certain food related applications.
High transfer rates are achievable with the fast and efficient GP50 FGG robot, which offers a perfectly tuned combination of payload / speed / wrist allowable moment. Designed with our Sigma-7-Servo Motor Generation, the GP50 FGG benefits from improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 50 kg
- Maksimum Çalışma Aralığı
- 2061 mm
- Tekrarlanabilirlik
- 0.03 mm
- Ağırlık
- 585 kg
- Güç Kaynağı
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 178 °/s
- Maximum Speed U Axis
- 178 °/s
- Maximum Speed R Axis
- 150 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 200 °/s
- Montaj Seçenekleri
- x Hayır
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Broşürler | İngilizce |
Broşürler | İngilizce | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Broşürler | Almanca |
Broşürler | Almanca | |
| GP50 FGG 2D CAD/CAE | | CAD/CAE | ||
| GP50 FGG 3D CAD/CAE | | CAD/CAE |
