Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GP FGG Series

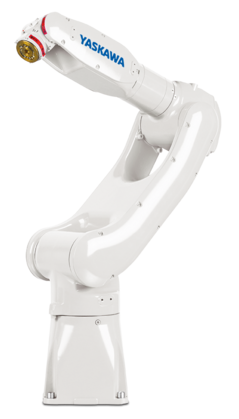

GP7 FGG
Agile 6-Axis Robot for Food Handling Applications
Ürünlere Genel Bakış
The GP7 FGG is a compact and agile 6-axis robot with 7 kg payload, 927 mm reach and outstanding repeatability of +/- 0.01 mm.
Due to latest Sigma7 Servo Technology, the GP7 FGG provides excellent axis speeds and accelerations. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints allows the robot to be used in certain food related applications. Media wiring for grippers is lead through the arm, with several connecting option on the robot arm and wrist. The connection cables on the robot base can be lead either from the side or from below through the base plate.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 7 kg
- Maksimum Çalışma Aralığı
- 927 mm
- Tekrarlanabilirlik
- 0.01 mm
- Ağırlık
- 37 kg
- Güç Kaynağı
- 1 kVA
- Maximum Speed S Axis
- 375 °/s
- Maximum Speed L Axis
- 315 °/s
- Maximum Speed U Axis
- 410 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Montaj Seçenekleri
- x Hayır
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Broşürler | İngilizce |
Broşürler | İngilizce | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Broşürler | Almanca |
Broşürler | Almanca | |
| GP7 2D CAD/CAE | | CAD/CAE | ||
| GP7 3D CAD/CAE | | CAD/CAE |
