Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
AR Series
AR2010
Arc Welding Robot with extended 2m reach
Ürünlere Genel Bakış

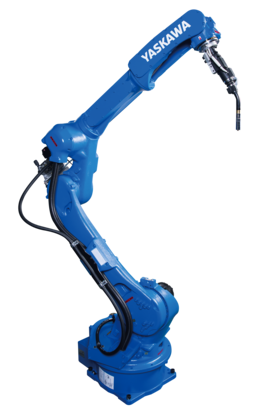

The six-axis MOTOMAN AR2010 is perfect for robotic arc welding, cutting and other path-related applications. It combines precision, performance and functionality in a way which made MOTOMAN welding robots superior over the last decades. The AR2010 allows you to achieve optimal welding results even under extremely difficult conditions.
With a high payload of up to 12 kg and a wide working range of 2,010 mm this robot is well suited for any kind of professional welding equipment, process and larger workpieces. The bended arm design and hollow arm structure allows integrated torch cabling and avoids collisions.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 12 kg
- Maksimum Çalışma Aralığı
- 2010 mm
- Tekrarlanabilirlik
- 0.03 mm
- Ağırlık
- 260 kg
- Güç Kaynağı
- 2 kVA
- Maximum Speed S Axis
- 210 °/s
- Maximum Speed L Axis
- 210 °/s
- Maximum Speed U Axis
- 220 °/s
- Maximum Speed R Axis
- 435 °/s
- Maximum Speed B Axis
- 435 °/s
- Maximum Speed T Axis
- 700 °/s
- Montaj Seçenekleri
- Floor, Wall, Ceiling
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
| Application Brochure Welding Broşürler | İngilizce | Broşürler | İngilizce | |
| Flyer Robot AR2010 Data sheet | İngilizce | Data sheet | İngilizce | |
| Flyer Robot AR2010 Data sheet | Almanca | Data sheet | Almanca | |
| AR2010 2D CAD/CAE | | CAD/CAE | ||
| AR2010 3D CAD/CAE | | CAD/CAE | ||
| Flyer Robot AR2010 Data sheet | Fransızca | Data sheet | Fransızca | |
| Brochure Soudage Robotisé Yaskawa Broşürler | Fransızca | Broşürler | Fransızca | |
|
Yaskawa Motoman Robotlu Kaynak Çözümleri
AR Serisi Robotları Broşürler | Türkçe |
Broşürler | Türkçe |
