Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GA Series
GA50
6-axis robot for high precision Laser Welding, Cutting & Cladding
Ürünlere Genel Bakış

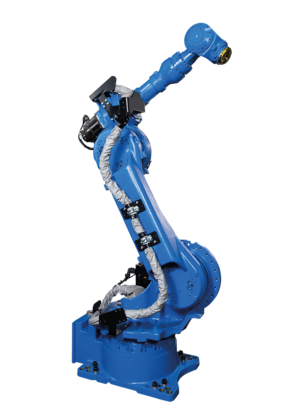

The MOTOMAN GA50 robot is designed for applications that require high precision and path accuracy, such as 3D laser welding or cutting. It provides a payload of 50 kg and a high reach of 2,038 mm, which allows processing of large workpieces using common laser heads.
In combination with the advanced Sigma-7 servo drive technology and tolerance-optimized precision gearboxes, this manipulator achieves very high positioning and path accuracy paired with high mechanical stiffness.
The MOTOMAN YRC1000 high-performance robot controller offers a wide range of path-related programming functions, interfaces and communication options for integrating the robot.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 50 kg
- Maksimum Çalışma Aralığı
- 2038 mm
- Tekrarlanabilirlik
- 0.01 mm
- Ağırlık
- 855 kg
- Güç Kaynağı
- 4.5 kVA
- Maximum Speed S Axis
- 150 °/s
- Maximum Speed L Axis
- 150 °/s
- Maximum Speed U Axis
- 150 °/s
- Maximum Speed R Axis
- 250 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 250 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Flyer Robot GA50
Laser-Schweißen, -Schneiden & Auftragen Data sheet | Almanca |
Data sheet | Almanca | |
|
Flyer Robot GA50
Laser Welding, Cutting & Cladding Data sheet | İngilizce |
Data sheet | İngilizce | |
| GA50 2D CAD/CAE | | CAD/CAE | ||
| GA50 3D CAD/CAE | | CAD/CAE | ||
|
