Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
SP Series
SP100
Compact Spot Welding & Handling Robot
Ürünlere Genel Bakış

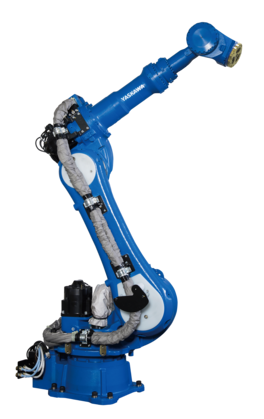

The MOTOMAN SP100 is a compact spot welding and handling robot providing 100 kg payload (including C-adapter) and 2236 mm working range for servo-controlled lightweight welding guns.
This robot is suitable for compact spot welding lines in car body construction with high robot density, for economical welding of small subassemblies, and for space-saving installation on a positioner.
The MOTOMAN SP100 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma-7 servo drive technology which offers high dynamics and energy efficiency, and enables outstanding cycle times.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 100 kg
- Maksimum Çalışma Aralığı
- 2236 mm
- Tekrarlanabilirlik
- 0.03 mm
- Ağırlık
- 660 kg
- Güç Kaynağı
- 5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 110 °/s
- Maximum Speed U Axis
- 127 °/s
- Maximum Speed R Axis
- 175 °/s
- Maximum Speed B Axis
- 175 °/s
- Maximum Speed T Axis
- 255 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Flyer Robot SP100
Spot welding & handling with the SP series Data sheet | İngilizce |
Data sheet | İngilizce | |
|
Flyer Robot SP100
Punktschweißen & Handling mit der SP-Serie Data sheet | Almanca |
Data sheet | Almanca | |
| SP100 2D CAD/CAE | | CAD/CAE | ||
| GP110_SP100 3D CAD/CAE | | CAD/CAE | ||
|
MOTOMAN Punktschweißsysteme
MOTOMAN SP-Serie und YRC1000 Robotersteuerung Broşürler | Almanca |
Broşürler | Almanca | |
|
MOTOMAN Spot Welding Solutions
MOTOMAN SP-series and YRC1000 robot controller Broşürler | İngilizce |
Broşürler | İngilizce |
