SG Series

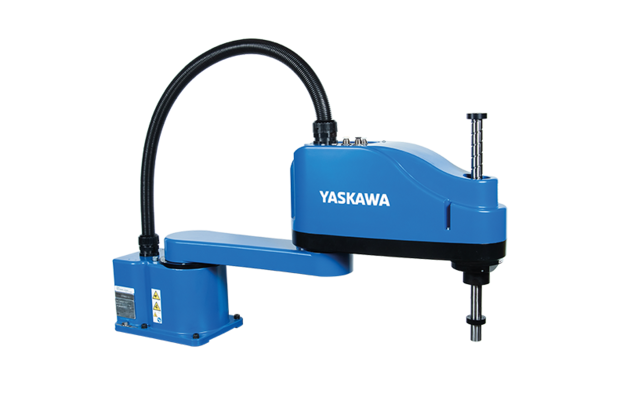

SG650
High speed scara robot
Ürünlere Genel Bakış
Designed for fast operating performance, the SG650 4-axis SCARA robot is ideal for increasing throughput for small part processing applications. It can handle part weights up to 6 kg in a radius of 650 mm. Highly precise and repeatable, the SG650 is well-suited for assembly and sortation processes needing short cycle times, as well as multi-process systems requiring pick-and-place capability. A compact body design with small footprint minimizes mounting space and enables easy integration with existing automation.

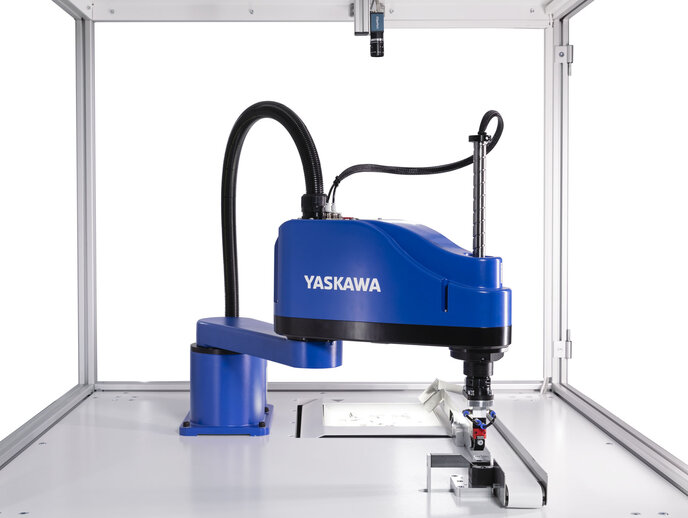

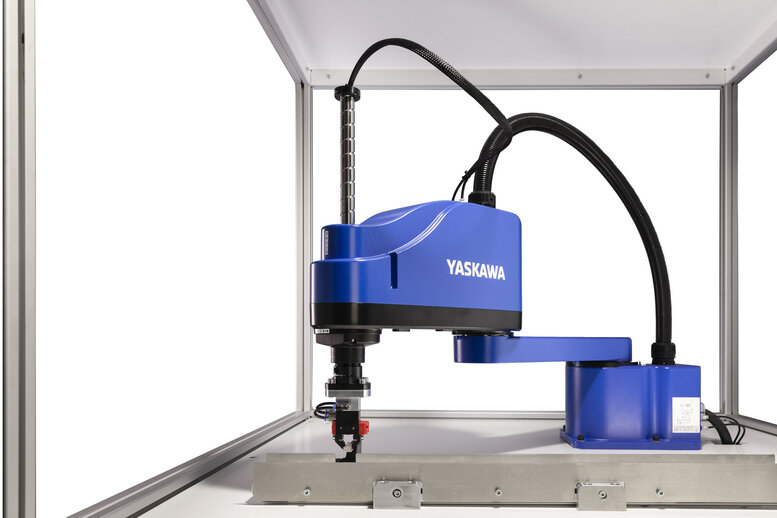

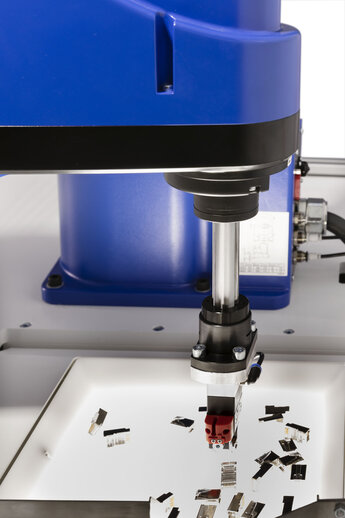

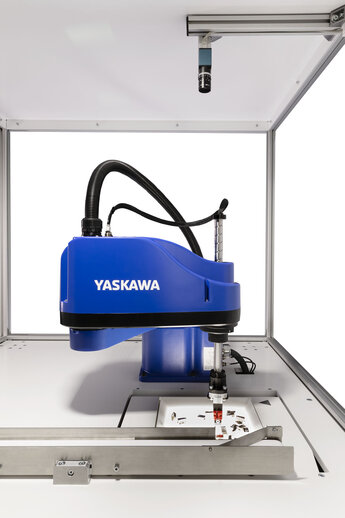

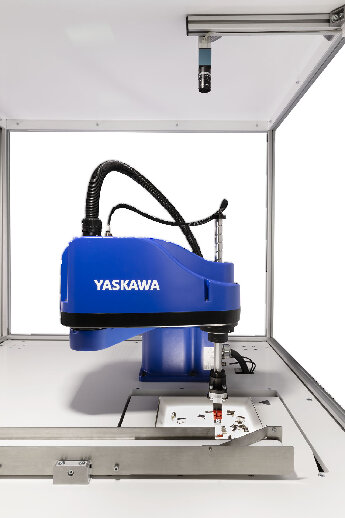

The SG650 is well suited for pick&place and smart part feeding in assembly.
Teknik Detaylar
- Eksen Sayısı
- 4
- Taşıma Kapasitesİ
- 6 kg
- Maksimum Çalışma Aralığı
- 650 mm
- Tekrarlanabilirlik
- 0.01 mm
- Ağırlık
- 19 kg
- Güç Kaynağı
- 1 kVA
- Maximum Speed S Axis
- 450 °/s
- Maximum Speed L Axis
- 730 °/s
- Maximum Speed U Axis
- 1300 mm/s
- Maximum Speed R Axis
- 2500 °/s
- Maximum Speed B Axis
- x Hayır
- Maximum Speed T Axis
- x Hayır
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
| Flyer Robot Scara SG650 Data sheet | İngilizce | Data sheet | İngilizce | |
| Flyer Robot Scara SG650 Data sheet | Almanca | Data sheet | Almanca | |
| SG650 2D CAD/CAE | | CAD/CAE | ||
| SG650 3D CAD/CAE | | CAD/CAE | ||
| Flyer Robot Scara SG650 Data sheet | Fransızca | Data sheet | Fransızca |
