PL Series
PL190
High Performance Palletizing & Handling, learn more.
Ürünlere Genel Bakış

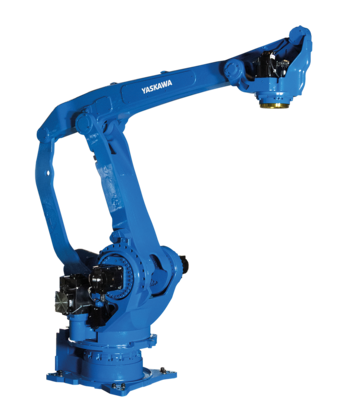

With over 1700 cycles per hour, the fast and powerful 4-axis MOTOMAN PL190 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.
The optimized kinematic structure of this robot provides even better stability and higher max. payload capacity of 190 kg compared to the predecessor model.
The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.
Teknik Detaylar
- Eksen Sayısı
- 4
- Taşıma Kapasitesİ
- 190 kg
- Maksimum Çalışma Aralığı
- 3159 mm
- Tekrarlanabilirlik
- 0.05 mm
- Ağırlık
- 1680 kg
- Güç Kaynağı
- 9.5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 145 °/s
- Maximum Speed U Axis
- 145 °/s
- Maximum Speed T Axis
- 420 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
