PL Series

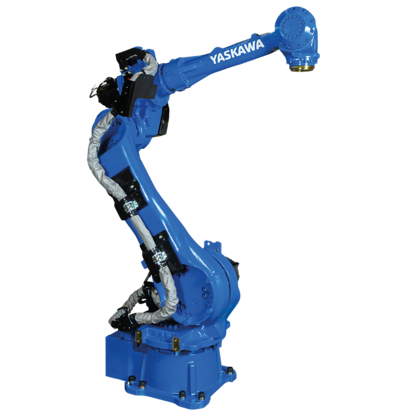

PL80
Slim & flexible 5-axis Palletizing Robot
Ürünlere Genel Bakış

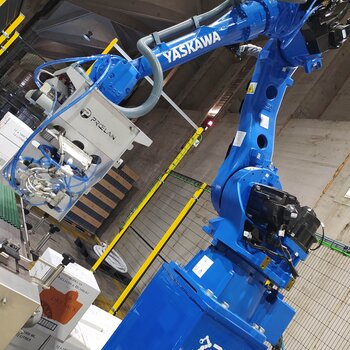

The MOTOMAN PL80 robot easily palletizes loads weighing up to 80 kg and has enormous axis speeds to ensure high palletizing cycles. Thanks to its kinematics, the small palletizing and handling robot of the Motoman PL series is ideally suited for box, carton and pack palletizing, for example in the growing logistics and e-commerce market. Very high palletizing cycles are required here. The MOTOMAN PL80 meets these requirements with over 800 cycles per hour.

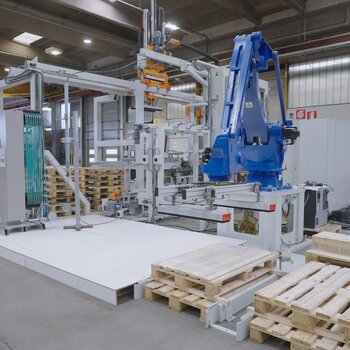

Furthermore, the MOTOMAN PL80 also impresses with its low overall height, slim design and small footprint, in areas of application where space is often at a premium. Despite its very compact and slim design, the manipulator has sufficient horizontal and vertical reach for versatile applications, for example in end-of-line palletizing.
Teknik Detaylar
- Eksen Sayısı
- 5
- Taşıma Kapasitesİ
- 80 kg
- Maksimum Çalışma Aralığı
- 2061 mm
- Tekrarlanabilirlik
- 0.03 mm
- Ağırlık
- 565 kg
- Güç Kaynağı
- 4.5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed B Axis
- 180 °/s
- Maximum Speed T Axis
- 500 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
