GP Series

GP120RL

Long-arm shelf-mounted robot with 4m reach

Ürünlere Genel Bakış

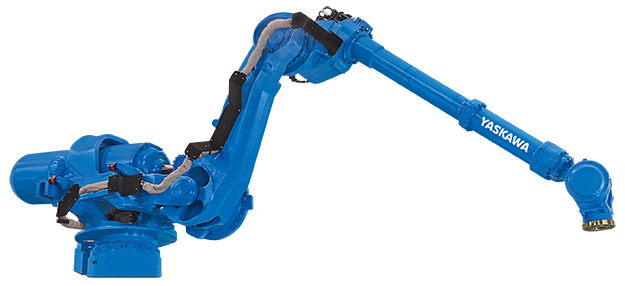

The flexible, shelf-mounted MOTOMAN GP120RL robot provides a superb reach of 4 meters (!), a payload of 120 kg and an outstanding repeatability of better than +/- 0.2 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space.

The MOTOMAN GP120RL is the ideal candidate for (multi) machine tending from above, press brake tending and loading/unloading long or flat panels to machines with large loading areas. In many applications, this robot helps avoiding installation of robot tracks or gantries.

Our customers are preferring this robot for Machine Tending (large CNC and Injection Moulding Machines), Wood & Furniture Handling and Packaging, Press Tending and Handling Applications in Automotive and Agricultural or Construction Machinery.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
120 kg

Maksimum Çalışma Aralığı
4004 mm

Tekrarlanabilirlik
0.2 mm

Ağırlık
1830 kg

Güç Kaynağı
2 kVA

Maximum Speed S Axis
90 °/s

Maximum Speed L Axis
85 °/s

Maximum Speed U Axis
85 °/s

Maximum Speed R Axis
175 °/s

Maximum Speed B Axis
150 °/s

Maximum Speed T Axis
240 °/s

Montaj Seçenekleri
Shelf-Mounted
