GP Series

GP12

6-Axis Handling Robot with 12 kg payload

Ürünlere Genel Bakış

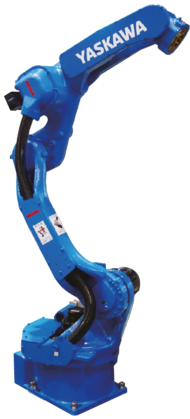

The GP12 is a highly versatile 6-axis industrial robot with 12 kg payload, 1440 mm reach and outstanding repeatability of +/- 0.02 mm.

You will achieve high transfer rates with this extremely fast and efficient GP12 robot, offering a perfectly tuned payload / speed / wrist allowable moment combination. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP12 offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.

This robot is also available with high IP65/67 dust & liquid protection to operate in harsh environments.

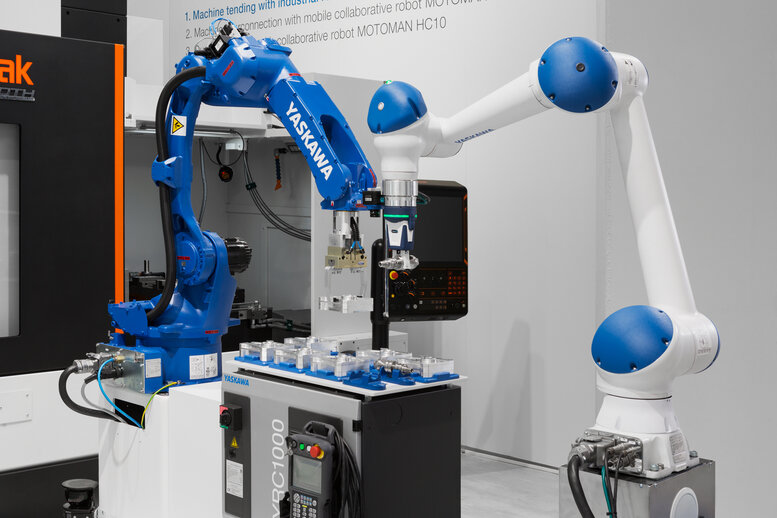

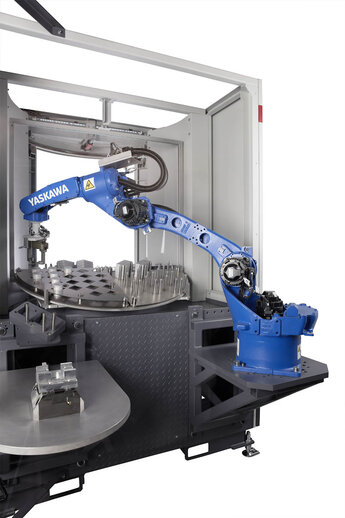

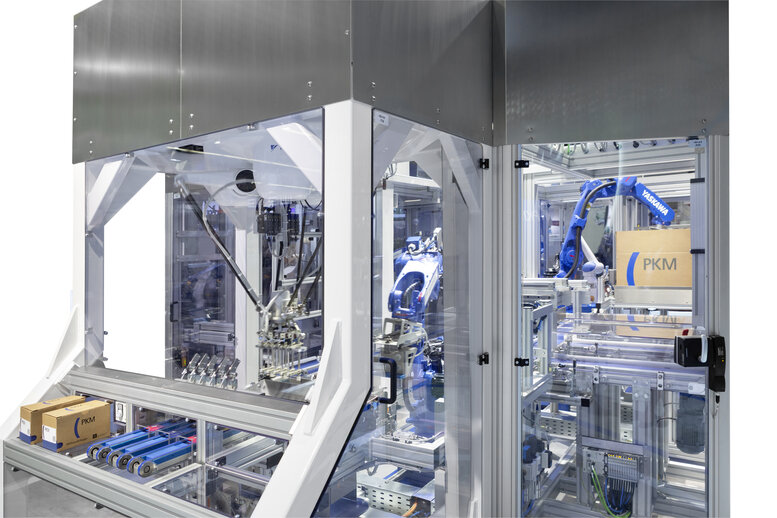

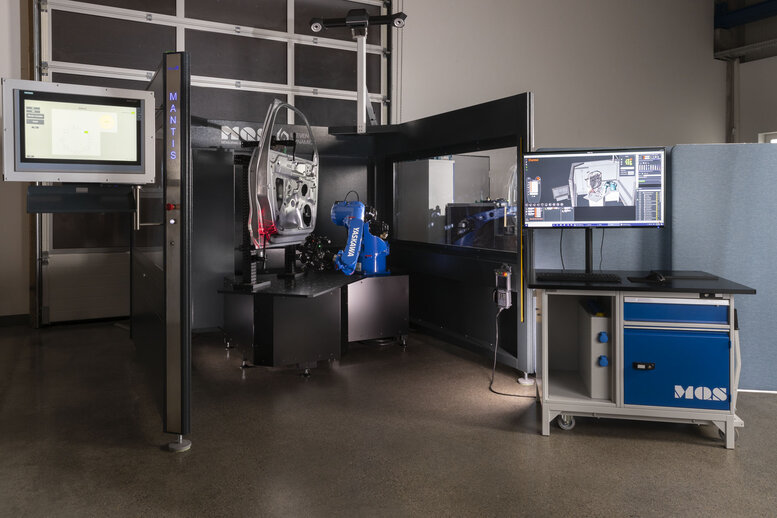

The GP12 is perfect for a wide range of applications, including machine tending, material handling, assembly, additive manufacturing, dispensing, grinding/polishing and quality inspection. Also in the field of e-Commerce, Consumer Good Logistics and Postal Automation, the GP12 is an attractive candidate for outstanding throughput, in combination with Intelligent Machine Vision.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
12 kg

Maksimum Çalışma Aralığı
1440 mm

Tekrarlanabilirlik
0.02 mm

Ağırlık
150 kg

Güç Kaynağı
1.5 kVA

Maximum Speed S Axis
260 °/s

Maximum Speed L Axis
230 °/s

Maximum Speed U Axis
260 °/s

Maximum Speed R Axis
470 °/s

Maximum Speed B Axis
470 °/s

Maximum Speed T Axis
700 °/s

Montaj Seçenekleri
Ceiling, Wall, Floor
