Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GP Series
GP165R
Shelf mounted robot with high payload
Ürünlere Genel Bakış

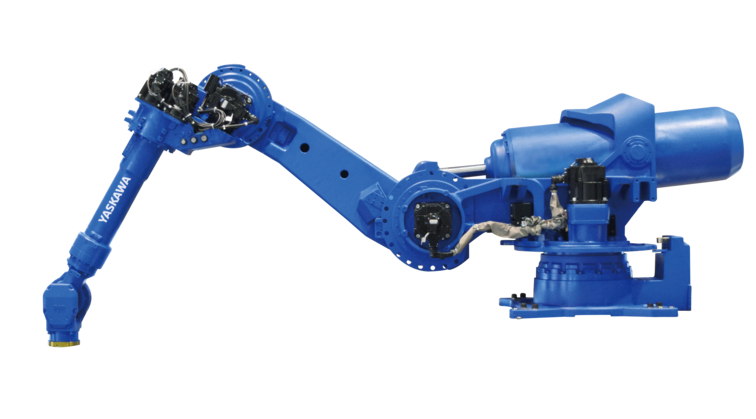

The flexible, shelf-mounted MOTOMAN GP165R robot provides extended reach of 3.134 mm, a payload of 165 kg and an outstanding repeatability of better than +/- 0.05 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space. Latest Sigma7 Servo Motor technology and high inertia wrist allows fast axis speed and acceleration to decrease cycle time and optimize production output.
The MOTOMAN GP165R is well suited for spot welding, handling and (multi) machine tending.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 165 kg
- Maksimum Çalışma Aralığı
- 3143 mm
- Tekrarlanabilirlik
- 0.05 mm
- Ağırlık
- 1760 kg
- Güç Kaynağı
- 5 kVA
- Maximum Speed S Axis
- 105 °/s
- Maximum Speed L Axis
- 105 °/s
- Maximum Speed U Axis
- 105 °/s
- Maximum Speed R Axis
- 175 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 240 °/s
- Montaj Seçenekleri
- Shelf-Mounted
- Diğer Özellikler
- x Hayır
