GP Series

GP180

Multi-Purpose Handling Robot with 180 kg Payload

Ürünlere Genel Bakış

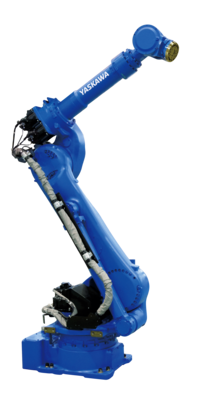

The MOTOMAN GP180 handling robot provides a payload of 180 kg and a maximum reach of 2,702 mm, combined with an excellent repeatability precision of +/- 0,05 mm.

This six-axis GP180 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. A heavy mechanical balancer is not required any more, and latest high performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A wrist with high moment and inertia ratings enables the GP180 robot to efficiently handle larger and heavier payloads for superior performance.

For use in harsh environments, a GP180 version with high IP65/67 Protection (dust & liquid proof) is available.

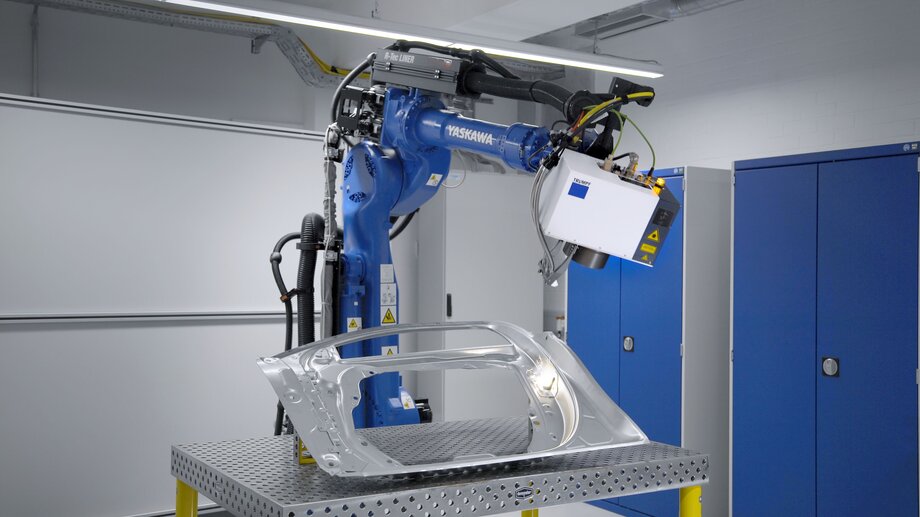

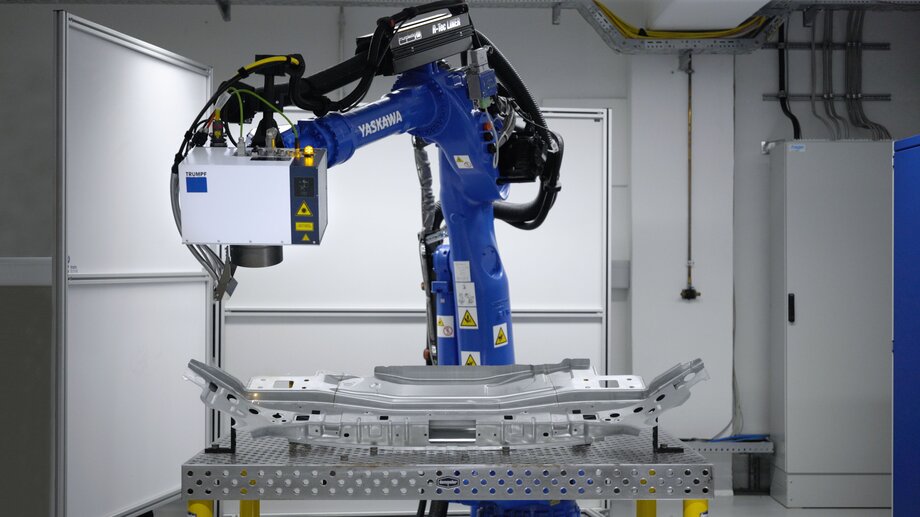

The GP180 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Press Tending and Material Cutting/Trimming.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
180 kg

Maksimum Çalışma Aralığı
2702 mm

Tekrarlanabilirlik
0.05 mm

Ağırlık
1020 kg

Güç Kaynağı
5 kVA

Maximum Speed S Axis
125 °/s

Maximum Speed L Axis
115 °/s

Maximum Speed U Axis
125 °/s

Maximum Speed R Axis
182 °/s

Maximum Speed B Axis
175 °/s

Maximum Speed T Axis
265 °/s

Montaj Seçenekleri
Floor
