GP Series

GP200R

Shelf mounted robot with high payload

Ürünlere Genel Bakış

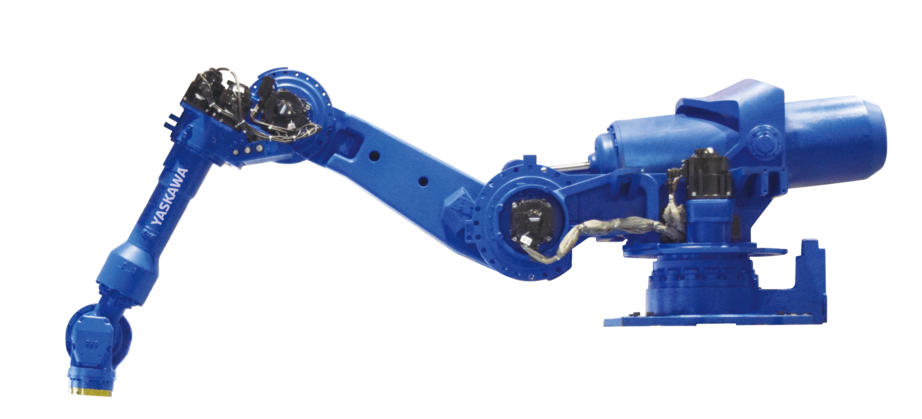

The flexible, shelf-mounted MOTOMAN GP200R robot provides an extended reach of 3.140 mm, a payload of 200 kg and an outstanding repeatability of better than +/- 0.05 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space. The latest Sigma7 Servo Motor technology and high inertia wrist allows fast axis speed and acceleration to decrease cycle time and optimize production output.

The MOTOMAN GP200R is well suited for heavy spot welding guns and grippers in spot welding, press transfer, material handling and machine tending.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
200 kg

Maksimum Çalışma Aralığı
3140 mm

Tekrarlanabilirlik
0.05 mm

Ağırlık
1830 kg

Güç Kaynağı
5 kVA

Maximum Speed S Axis
90 °/s

Maximum Speed L Axis
85 °/s

Maximum Speed U Axis
85 °/s

Maximum Speed R Axis
120 °/s

Maximum Speed B Axis
120 °/s

Maximum Speed T Axis
190 °/s

Montaj Seçenekleri
Shelf-Mounted
