Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GP Series

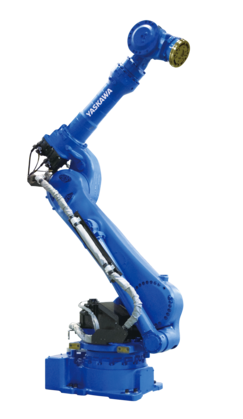

GP225
Multi-Purpose Handling Robot with 225 kg Payload
Ürünlere Genel Bakış
The MOTOMAN GP225 handling robot provides a payload of 225 kg and a maximum reach of 2,702 mm, combined with an excellent repeatability precision of +/- 0,05 mm.
This six-axis GP225 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. A heavy mechanical balancer is not required any more, and latest high performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A wrist with high moment and inertia ratings enables the GP225 robot to efficiently handle larger and heavier payloads for superior performance.
For use in harsh environments, a GP225 version with high IP65/67 Protection (dust & liquid proof) is available.
The GP225 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Press Tending and Material Cutting/Trimming.
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 225 kg
- Maksimum Çalışma Aralığı
- 2702 mm
- Tekrarlanabilirlik
- 0.05 mm
- Ağırlık
- 1080 kg
- Güç Kaynağı
- 5 kVA
- Maximum Speed S Axis
- 120 °/s
- Maximum Speed L Axis
- 97 °/s
- Maximum Speed U Axis
- 115 °/s
- Maximum Speed R Axis
- 145 °/s
- Maximum Speed B Axis
- 145 °/s
- Maximum Speed T Axis
- 220 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Flyer Robot GP225
Handling and General Applications with the GP-Series Data sheet | İngilizce |
Data sheet | İngilizce | |
|
Flyer Robot GP225
Handling und Allgemeine Anwendungen mit der GP-Serie Data sheet | Almanca |
Data sheet | Almanca | |
| GP225 2D CAD/CAE | | CAD/CAE | ||
| GP225_SP210 3D.zip CAD/CAE | | CAD/CAE | ||
| Brochure GP Series Broşürler | İngilizce | Broşürler | İngilizce | |
| Broschüre GP-Serie Broşürler | Almanca | Broşürler | Almanca |
