Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
GP Series
GP360
General Purpose 6-Axis Handling Robots
Ürünlere Genel Bakış

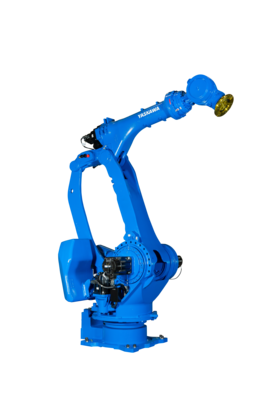

The MOTOMAN GP360 6-axis robot is a powerful and versatile industrial robot that is ideal for a wide range of applications. The product features a high payload of 360 kg and a large working range.
The robot is an allrounder and ideal for a wide range of applications, including material handling, machine tending, assembly, and dispensing as well as palletizing tasks. It is particularly well suited for handling large workpieces, such as heavy battery modules or vehicle components in the automotive industry.
Thanks to its parallel kinematics, the robot offers high rigidity and stability when handling loads with high moments of inertia. Robust swivel bearings ensure smooth and reliable arm movement.
The GP360 is optionally available with the PLd, Category 3 »Functional Safety Unit (FSU)« for extended safety functions.
KEY BENEFITS
- Fast, flexible, and powerful
- High payload: 360 kg
- Large working range: 2,832 mm
- Parallel link design for high stability
- Heavy-duty swivel bearings for smooth arm rotation
- Advanced safety functions (PLd, Category 3 FSU available)
TYPICAL APPLICATIONS
- Material Handling
- Assembly
- Machine Tending
- Dispensing & Glueing
- Palletizing / Packaging
Teknik Detaylar
- Eksen Sayısı
- 6
- Taşıma Kapasitesİ
- 360 kg
- Maksimum Çalışma Aralığı
- 2832 mm
- Tekrarlanabilirlik
- 0.1 mm
- Ağırlık
- 2380 kg
- Güç Kaynağı
- 7.5 kVA
- Maximum Speed S Axis
- 110 °/s
- Maximum Speed L Axis
- 90 °/s
- Maximum Speed U Axis
- 90 °/s
- Maximum Speed R Axis
- 125 °/s
- Maximum Speed B Axis
- 125 °/s
- Maximum Speed T Axis
- 205 °/s
- Montaj Seçenekleri
- Floor
- Diğer Özellikler
- x Hayır
