GP Series

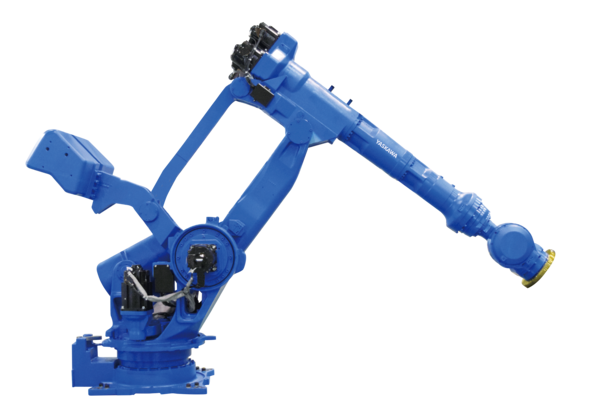

GP400

Heavy Payload 6-Axis Robot

Ürünlere Genel Bakış

The powerful MOTOMAN GP400 handling robot provides an impressive payload of 400 kg and a maximum reach of 2,942 mm. Due to its parallel link design, the outstanding repeatability is better than +/- 0.1 mm.

Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP400 is ideal for heavy part handling, machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts.

A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floor space. Equipped with heavy-duty bearings for smooth arm rotation, the GP400 is a smart choice to fulfil a variety of heavy-payload needs.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
400 kg

Maksimum Çalışma Aralığı
2942 mm

Tekrarlanabilirlik
0.1 mm

Ağırlık
2840 kg

Güç Kaynağı
7 kVA

Maximum Speed S Axis
102 °/s

Maximum Speed L Axis
97 °/s

Maximum Speed U Axis
97 °/s

Maximum Speed R Axis
80 °/s

Maximum Speed B Axis
80 °/s

Maximum Speed T Axis
172 °/s

Montaj Seçenekleri
Floor
