GP Series

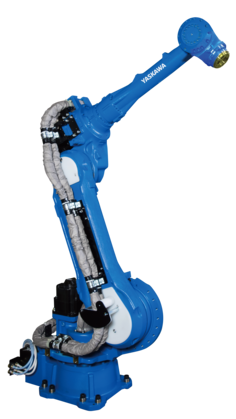

GP88

Multi-Purpose Handling Robot with 88 kg Payload

Ürünlere Genel Bakış

The GP88 is a compact 6-axis industrial robot with 88 kg payload, 2236 mm reach and excellent repeatability of +/- 0.03 mm. Equipped to handle high payloads for heavy part processing, the powerful six-axis GP88 robot increases productivity for a wide selection of tasks. While high moment and inertia ratings support large and heavy applications, exceptionally quick axis speeds and acceleration capabilities reduce cycle time. The compact design enables high-density robot placement in workcells. Pre-wired with sognal and pneumatic lines, the high-speed GP88 offers simple installation, easy operation and minimal maintenance for increased production output.

A version with high IP67 (sust and liquid proof) protection class is available for jobs in harsh environments.

The GP88 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.

Teknik Detaylar

Eksen Sayısı
6

Taşıma Kapasitesİ
88 kg

Maksimum Çalışma Aralığı
2236 mm

Tekrarlanabilirlik
0.03 mm

Ağırlık
630 kg

Güç Kaynağı
4 kVA

Maximum Speed S Axis
170 °/s

Maximum Speed L Axis
140 °/s

Maximum Speed U Axis
160 °/s

Maximum Speed R Axis
230 °/s

Maximum Speed B Axis
230 °/s

Maximum Speed T Axis
350 °/s

Montaj Seçenekleri
Ceiling, Wall, Floor
