MPP Series

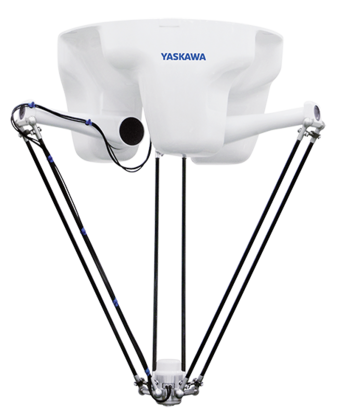

MPP3H
High Speed 4-axis Delta Robot with 3kg payload
Ürünlere Genel Bakış
The MOTOMAN MPP3H is a Delta robot with a maximum payload of 3 kg and a recommended range of motion (Ø 1040 x H 300 mm). Strongly depending on the payload and the motion pattern, the MPP3H can achieve speeds between 2 to 4 cycles per second.
The MPP3H is ISO Cleanroom Class 5 certified and IP67 protected (dust and liquid proof).
MPP3H robots are perfect for pick&place applications in Food, Life Sciences, Medical.
Teknik Detaylar
- Eksen Sayısı
- 4
- Taşıma Kapasitesİ
- 3 kg
- Maksimum Çalışma Aralığı
- 1300 mm
- Tekrarlanabilirlik
- 0.1 mm
- Ağırlık
- 115 kg
- Güç Kaynağı
- 1.5 kVA
- Maximum Speed S Axis
- x Hayır
- Maximum Speed L Axis
- x Hayır
- Maximum Speed U Axis
- x Hayır
- Maximum Speed R Axis
- x Hayır
- Maximum Speed B Axis
- x Hayır
- Maximum Speed T Axis
- x Hayır
- Montaj Seçenekleri
- Ceiling
- Diğer Özellikler
- x Hayır
